2180828-2 TE Connectivity | PCBX Electronics

2180828-2

Manufacturer:

TE Connectivity

Mfr.Part #:

2180828-2

Datasheet:

Description:

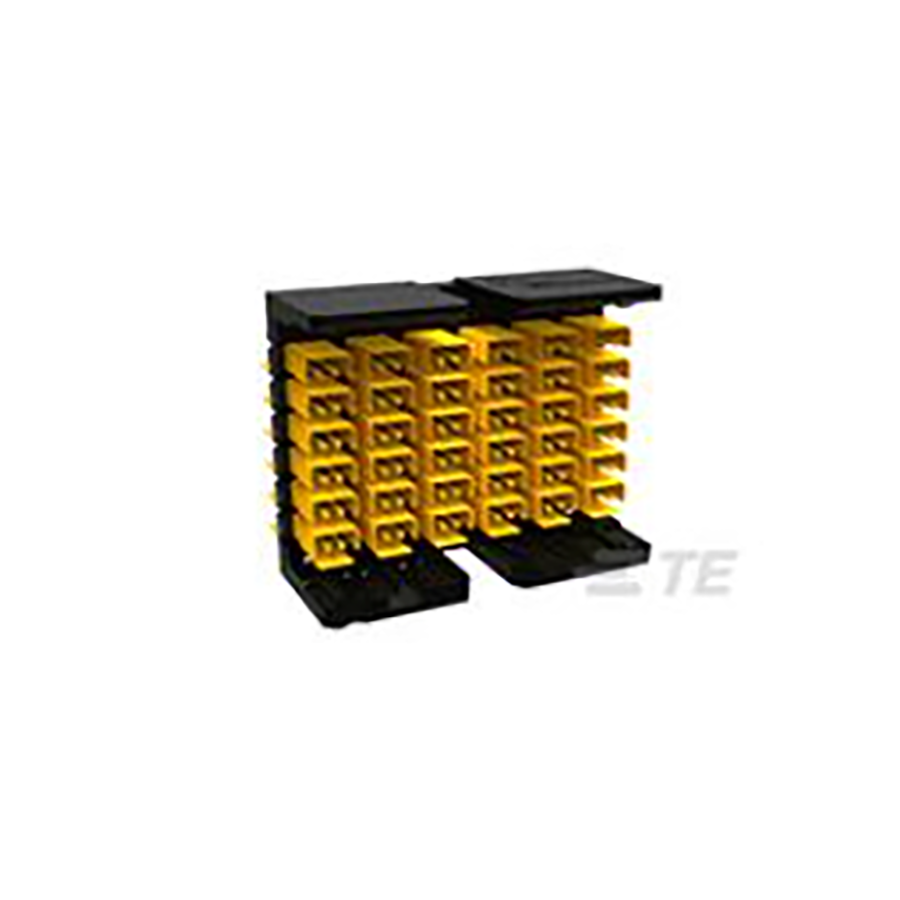

DIN 41612 Connectors Through Hole Number of Positions:96 Number of Rows:6 Pitch:4.4958 mm Backplane Connectors Male

Parameter	Value
Length	36.4 mm
Width	21.4 mm
Termination	Press-Fit
Max Operating Temperature	185 °C
Min Operating Temperature	-55 °C
Number of Pins	144
Height	36.322 mm
Packaging	Tube
RoHS	Compliant
REACH SVHC	Unknown
Contact Plating	Tin, Gold
Impedance	100 Ω
Contact Material(Contact Finish)	Copper Alloy
Pitch	4.4958 mm
Type	Backplane Connectors
Current Rating	500 mA
Max Current Rating	500 mA
Flammability Rating	UL94 V-0
Approvals	UL
Orientation	Vertical
Operating Supply Voltage	80 V
Lifecycle Status	Production (Last Updated: 10 months ago)
Gender	Male
Number of Contacts	144
ELV	Compliant
Hole Diameter	344 µm
Data Rate	56 GBps
Connector Type	Header
Number of Positions	96
Number of Rows	6
Row Spacing	2.4892 mm
Housing Material	Thermoplastic
Circuit Application	Signal
Contact Style	Press-Fit
Contact Current Rating	500 mA
Housing Color	Black
shrouded	Partially Shrouded
Number of Positions Loaded	All
PCB Thickness	1 mm
Tail Length	1.65 mm
Plating Thickness	760 nm
Number of Power Positions	96
Stackable	Yes
Stack Height	1.651 mm
Preloaded	Yes
Number of Signal Positions	96
Manufacturer Lifecycle Status	ACTIVE (Last Updated: 10 months ago)
Make First / Break Last	No
Sealable	No
Mating Alignment	With
Number of Pairs	48
Differential Pairs per Column	4
Differential Signaling	Yes
Number of Columns	8
Durability Rating	200 cycles
Number of Ground Positions	56
Mounting Angle	Vertical
